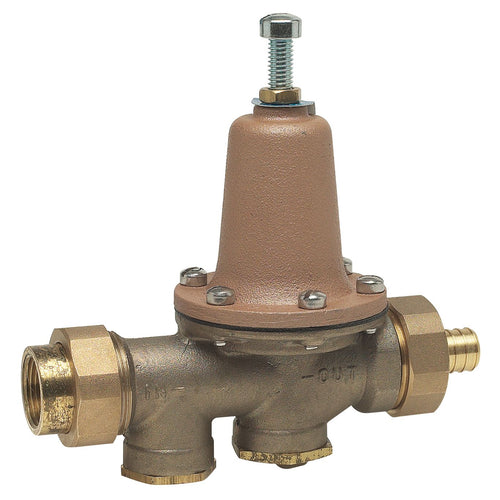

Watts Series LF25AUB-Z3 Water Pressure Reducing Valve 3/4 Inch 1/2 - 2 Inch Too

Watts

UPC:



Series LF25AUB-Z3 Lead Free* Water Pressure Reducing Valves are used in commercial and residential applications to reduce incoming water pressure to a predetermined level, thereby protecting downstream plumbing system components and reducing water consumption. For versatility, a variety of end connections are available: threaded, solder, PEX, quick-connect, CPVC, Press, or Cold Expansion PEX (ASTM F1960) with union and double union. Standard pressure setting is 50psi with an adjustable range of 25 ‒ 75psi (172 ‒ 517 kPa). For sizes: 1/2 to 2 IN (15 ‒ 50mm). Temperature range is 33 to 180 degrees F (0.5 to 82 degrees C).

Features

Sealed spring cage for accessible outdoor or pit applications
For water supply pressures up to 300psi
Integral stainless steel strainer and bypass feature that controls thermal expansion pressure
Designed for easy in-line servicing; has replaceable seat module
