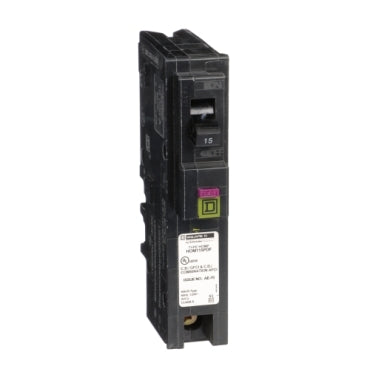

Schneider Mini Circuit Breaker Homeline Plug On Neutral Plug In UL

Schneider Electric

UPC: 00785901978695

Model: HOM115PDFC

Description

Square D™ Homeline™ Miniature Circuit Breakers, HOM115PDFC, is in a 1 inch wide format for 1-pole circuit breakers. They are designed to plug into Homeline load centers. has dual funcion circuit breaker application .Comes in clam packing. UL listed.

Specifications

Main
Product	Miniature circuit-breaker
Range	Homeline
Current Rating	15 A
Certifications	UL Listed
Voltage Rating	120 V AC
Mounting Type	Plug-in
Number of Poles	1P
Short Circuit Current Rating	10 kA
Number of Spaces	1
Circuit Breaker Type	Combination ARC-fault and ground fault class A 6 mA
Ratings	HACR rated
Electrical Connection	Screw clamp terminals
Wire Size	AWG 14...AWG 8 aluminium/copper)1 AWG 14...AWG 10 copper)2
Type of Packing	Clam packaging

Complementary
Connections - Terminals	Plug-on neutral
Tightening torque	35.40 lbf.in (4.0 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 8)
Height	3.13 in (79.50 mm)
Width	1 in (25.40 mm)
Depth	2.98 in (75.69 mm)
Net Weight	0.66 lb(US) (0.30 kg)

Environment
Ambient Air Temperature for Operation	104 °F (40 °C)

Ordering and shipping details
Category	01321-HOMELINE 1 POLE BULK BRK
Discount Schedule	CPH
GTIN	785901978695
Returnability	Yes
Country of origin	MX

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	8.00 in (20.32 cm)
Package 1 Width	1.50 in (3.81 cm)
Package 1 Length	4.50 in (11.43 cm)
Package 1 Weight	10.40 oz (294.835 g)

Contractual warranty
Warranty	Lifetime
