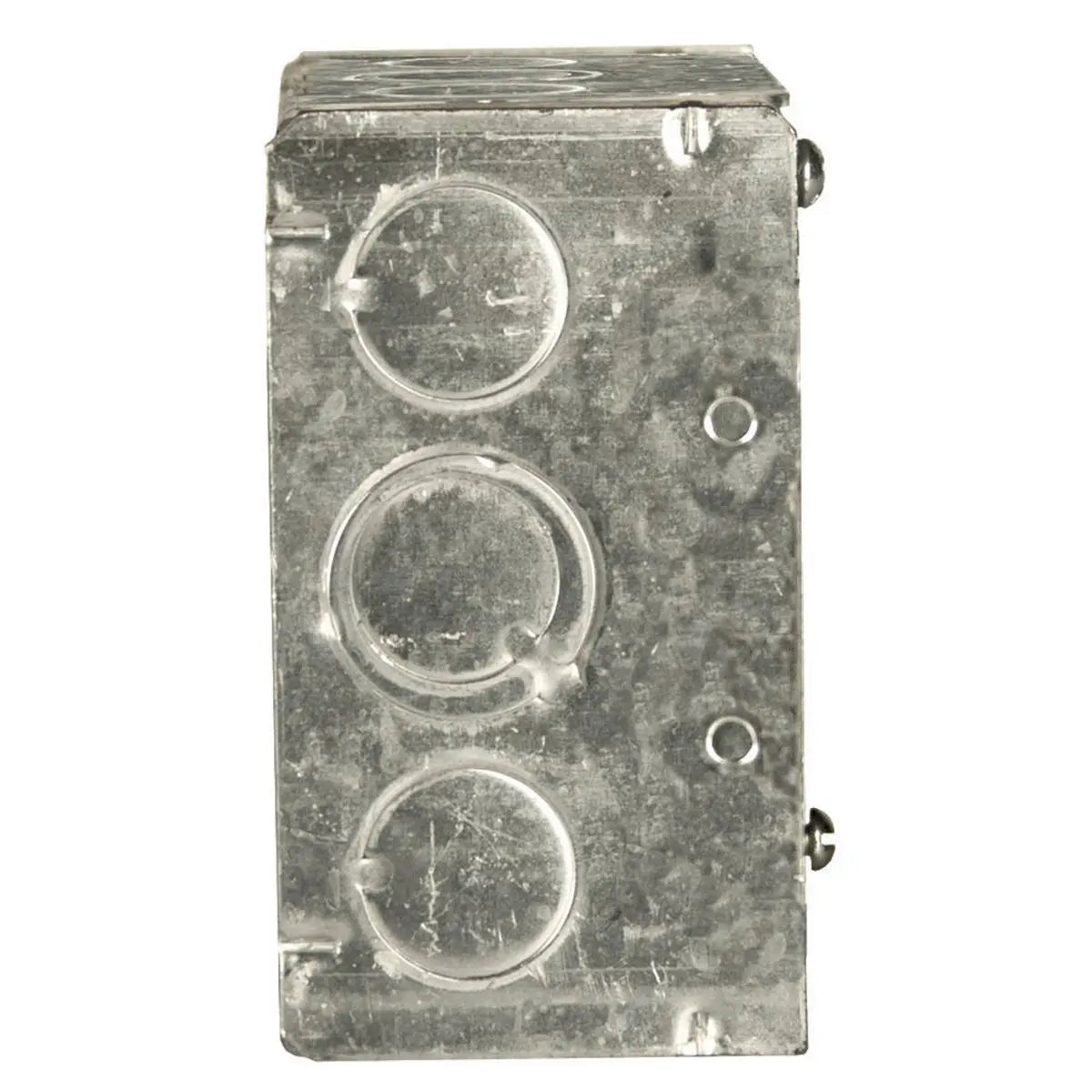

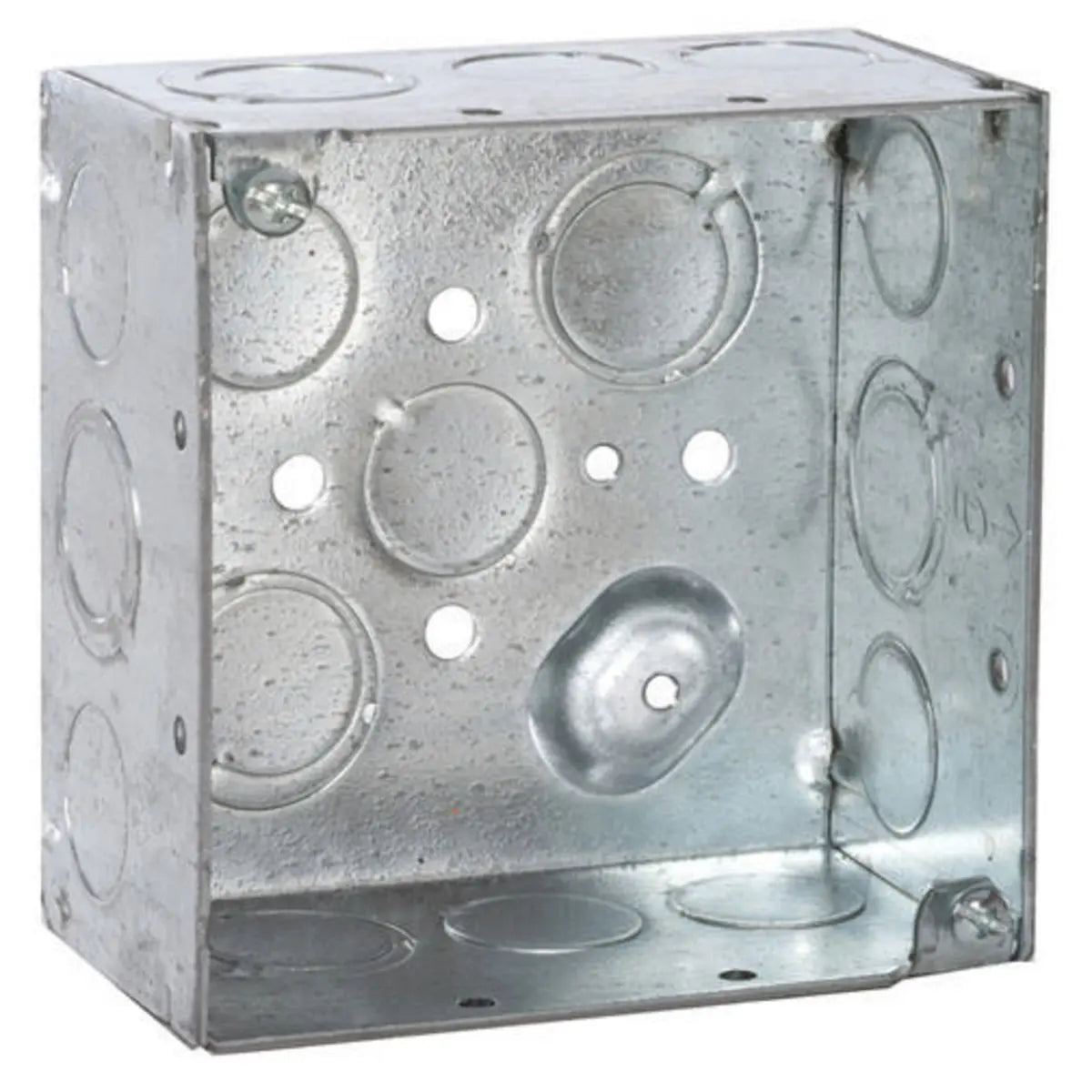

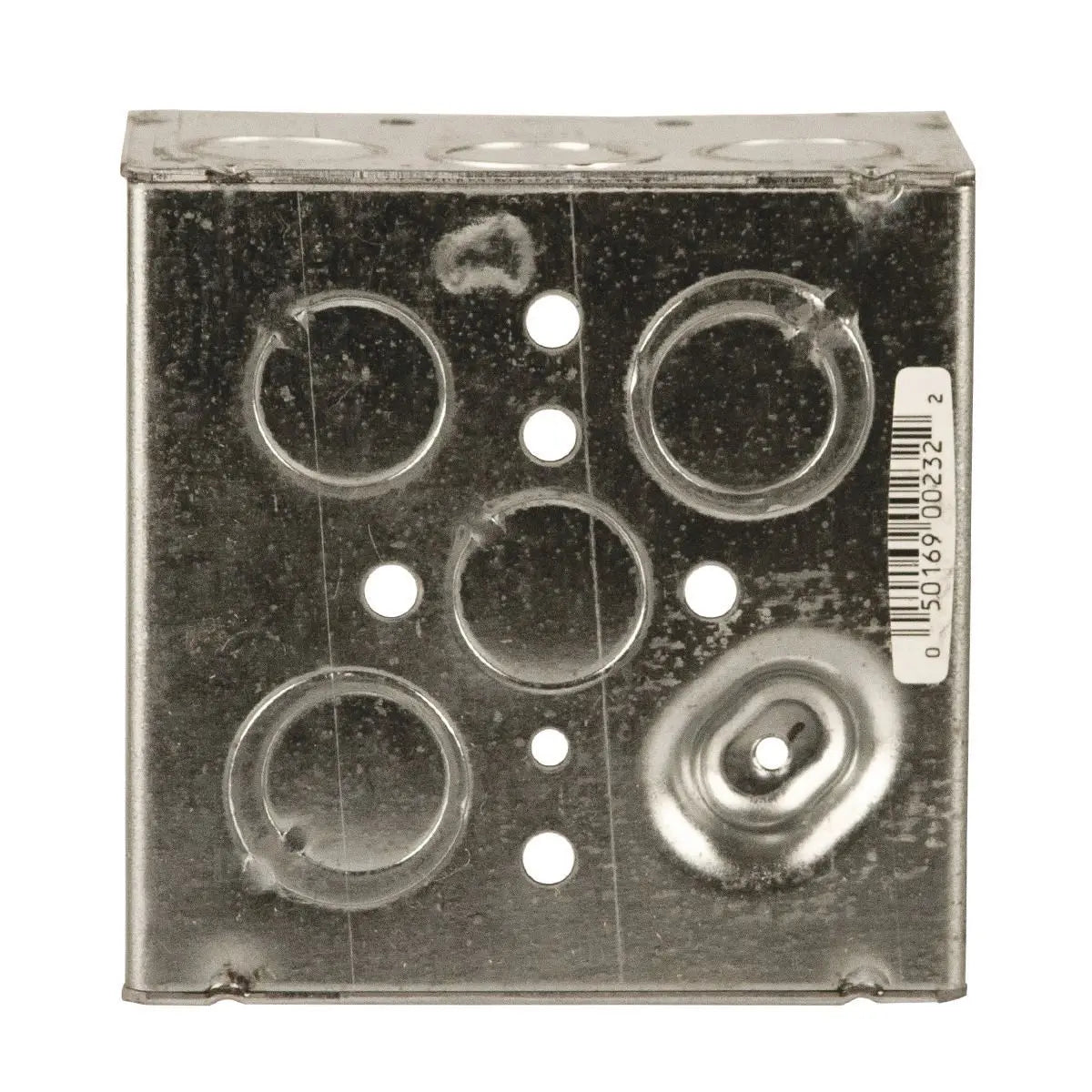

Square Box, Welded, 2-1/8 in. Deep, Ten 1/2 in KO's & Six TKO's, Raised Ground
Designed to enclose electrical wiring, switches, receptacles or lighting fixtures. Constructed from 1/16 in. pre-galvanized steel. 8-32 cover mounting screws assembled. Suitable for use without a bonding jumper in circuits up to 600V.
- Combination screw heads allow quick installation
- Welded construction
- Ten 1/2 in KO's & Six TKO's
- UL Listed
- 30.3 cu. in. capacity
- Raised ground
- Acceptable in 2-hour fire rated walls
- UPC barcoded
General
| Bracket Type |
No Bracket |
| Drawn or Welded |
Welded |
| Fire Resistance |
Yes |
| Knockouts |
1/2 in;1/2 - 3/4 in Combination (TKO) |
| Material |
Steel |
| Number of Gang(s) |
2-Gang |
| Type |
Box |
| Wiring System |
Conduit |
Dimensions
| Actual Depth |
2.434 in |
| Cubic Capacity |
30.3 cu.in |
| Depth |
2.125 in |
| Height |
4 in |
| Raised Ground |
Yes |
| Weight |
0.884 lb |
| Width |
4 in |
Electrical Ratings
| Power Distribution Features |
Fire Rated |
Certifications and Compliance
| Certified Listed |
UL Listed |
Logistics
| Carton Quantity |
25 |
| Packaging Type |
No Packaging |
| Pallet Quantity |
1750 |
