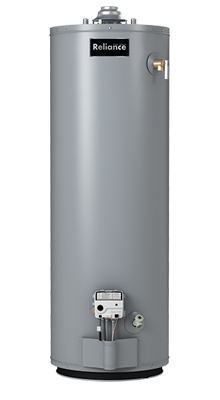

Reliance Natural Gas Water Heater

Reliance Natural Gas Water Heater

Reliance



Product Features

  • 6-year limited tank & parts warranty, 1-year labor warranty
  • Electronic gas control valve that provides precise temperature control and operational status
  • Piezo igniter allows for easy “one-hand” pilot ignition without matches
  • PEX dip tube
  • Glass-lined tank with anode rod protects against corrosion
  • “Environmentally-Friendly” Non-CFC foam insulation
  • Factory-installed PEX polymer lined heat trap nipples
  • Factory-installed temperature & pressure (T&P) relief valve


Specs

Tech Specs

  • Nominal Capacity: 40
  • Rated Storage Volume: 38
  • UEF: 0.61
  • Family Size: 4
  • Self Cleaning: Yes
  • Limited Warranty Tank: 6
  • Limited Warranty Parts: 6
  • Limited Warranty Labor: 1
  • Max BTUs Input: 35,500
  • Emissions: Low NOx
  • Foam Insulation: Yes
  • Water Connection Location: Top
  • Water Connection Size: 3/4
  • First Hour Rating (Gallons): 65

Dimensions

  • Height:58 1/4"
  • Height w/Draft Hood (inches):62"
  • Diameter:20"
  • Width:20"
  • Depth:20"
  • Vent Size:3 or 4"
