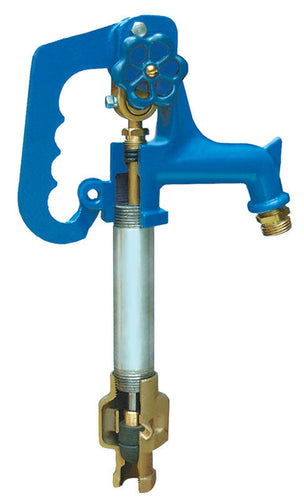

Simmons 800LF Series Deluxe Frost-Proof Yard Hydrant- Certified Lead Free

Simmons Manufacturing Company

UPC: 00008391033010

800LF Series Deluxe Frost-Proof Yard Hydrant
Certified Lead Free

Models 800LF – 818LF

Certified by Truesdail Laboratories. Meets all Federal Safe Drinking Water Acts and requirements.
Does not meet California Prop. 65 (Environmental Law)

• 3/4” or 1″ NPT Female Inlet
• 3/4” Male Hose Thread Outlet
• All Simmons Yard Hydrants have Cast Iron head and handle with Blue Polyester Powder Coated Finish
• Flow Lock Wheel
• Plunger can be replaced without digging the hydrant up.
• Max Pressure 120 PSI
• Many parts and accessories are common for all models

Part No.	Inlet	Bury Depth	Weight (lbs.)
800LF	3/4″	1′	11.9
810LF	1″	1′	11.9
801LF	3/4″	1-1/2′	13.5
811LF	1″	1-1/2′	13.5
802LF	3/4″	2′	14.5
812LF	1″	2′	14.5
803LF	3/4″	3′	16.8
813LF	1″	3′	16.8
804LF	3/4″	4′	18.9
814LF	1″	4′	18.9
805LF	3/4″	5′	21.2
815LF	1″	5′	21.2
806LF	3/4″	6′	23.4
816LF	1″	6′	23.4
807LF	3/4″	7′	25.7
817LF	1″	7′	25.7
808LF	3/4″	8′	28.2
818LF	1″	8′	28.2
