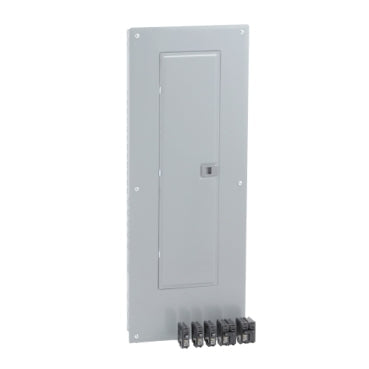

Schneider Load center Homeline 1 Phase Convertible Main Breaker PoN NEMA1 Value Pack
Model: HOM4080M200PCVP
Description
The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center has a two pole plug on neutral main supply circuit breaker that is rated at 200A 120/240 VAC single phase. Load center is also supplied with a two pole 30A 120/240 VAC circuit breaker and a one pole 20A 120/240 VAC circuit breaker. Homeline load center provides a 22 kA breaking capacity. This system provides 40 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover. The electrical connections are box lugs. The box lugs will accept a wire range of 4 AWG to 250 kcmil copper or aluminum wire. This Homeline load center has a height of 39.37 inches, a width of 14.25 inches, and depth of 3.74 inches. Homeline load centers are UL Listed.
Specifications
Product Type | Load Center |
---|---|
Marketing Trade Name | Homeline |
Load Center Type | PoN Convertible Mains (breaker) |
Rated Current | 200 A |
Number of Spaces | 40 |
Maximum Number of Single Pole Circuits | 80 |
Enclosure Rating | NEMA 1 indoor |
Cover Type | Combination flush/surface cover |
Electrical Connection | Lugs |
Provided Equipment | Circuit-breaker 1) 2P 200 A 120/240 V AC main supply ready assembled Circuit-breaker 3) 1P 20 A 120/240 V AC Circuit-breaker 2) 2P 30 A 120/240 V AC |
Max Short Circuit Current Rating | 22 kA |
---|---|
Maximum Number of Tandem Breakers | 40 |
Number of Phases | 1 phase |
Voltage Rating | 120/240 V AC |
Wire Size | AWG 4...250 kcmil aluminium/copper |
Ground Bar | Grounding bar (ordered separately) |
Wiring Configuration | 3-wire |
Busbar Material | Tin plated aluminium busbar |
Enclosure Material | Welded sheet steel |
Surface Finish | Baked enamel Gray |
Box Number | 12 |
Height | 39.37 in (1000 mm) |
Width | 14.25 in (362 mm) |
Depth | 3.74 in (95 mm) |
Ambient Air Temperature for Operation | 23 °F (-5 °C) 104 °F (40 °C) |
---|---|
Product Certifications | UL listed file E-6294 |
Category | 00185-MISC. HOM LOAD CENTERS |
---|---|
Discount Schedule | DE3C |
GTIN | 785901977513 |
Returnability | Yes |
Country of origin | US |
Unit Type of Package 1 | PCE |
---|---|
Number of Units in Package 1 | 1 |
Package 1 Height | 5.71 in (14.5 cm) |
Package 1 Width | 16.30 in (41.4 cm) |
Package 1 Length | 42.20 in (107.2 cm) |
Package 1 Weight | 39.70 lb(US) (18.008 kg) |
Unit Type of Package 2 | PAL |
Number of Units in Package 2 | 18 |
Package 2 Height | 40.00 in (101.6 cm) |
Package 2 Width | 40.00 in (101.6 cm) |
Package 2 Length | 48.00 in (121.92 cm) |
Package 2 Weight | 670.00 lb(US) (303.907 kg) |
