Model: HOM816M100PC
Description

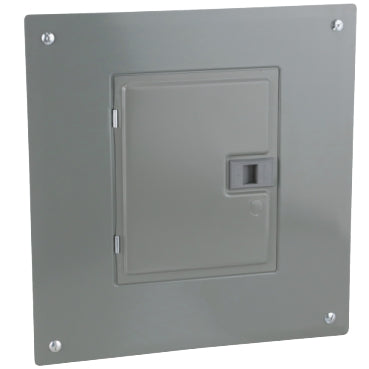

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center has a two pole plug on neutral main supply circuit breaker that is rated at 100A 120/240 VAC single phase. Homeline load center provides a 22 kA breaking capacity. This system provides 8 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover. The electrical connections are box lugs. The box lugs will accept a wire range of 6 AWG to 1 AWG copper or aluminum wire. This Homeline load center has a height of 14.92 inches, a width of 14.25 inches, and depth of 3.74 inches. Homeline load centers are UL Listed.
Specifications
Main
Product Type |
Load Center |
Marketing Trade Name |
Homeline |
Load Center Type |
PoN Convertible Mains (breaker) |
Rated Current |
100 A |
Number of Spaces |
8 |
Maximum Number of Single Pole Circuits |
16 |
Enclosure Rating |
NEMA 1 indoor |
Cover Type |
Combination flush/surface cover |
Electrical Connection |
Lugs |
Provided Equipment |
Circuit-breaker 1) 2P 100 A 120/240 V AC main supply ready assembled |
Complementary
Max Short Circuit Current Rating |
22 kA |
Maximum Number of Tandem Breakers |
8 |
Number of Phases |
1 phase |
Voltage Rating |
120/240 V AC |
Wire Size |
AWG 6...AWG 1 copper or aluminium |
Ground Bar |
Grounding bar (ordered separately) |
Wiring Configuration |
3-wire |
Busbar Material |
Tin plated aluminium busbar |
Enclosure Material |
Welded sheet steel |
Surface Finish |
Baked enamel Gray |
Box Number |
5 |
Height |
14.92 in (379 mm) |
Depth |
3.74 in (95 mm) |
Width |
14.25 in (362 mm) |
Environment
Ambient Air Temperature for Operation |
23 °F (-5 °C) 104 °F (40 °C) |
Product Certifications |
UL listed file E-6294 |
Ordering and shipping details
Category |
00149-HOM 2-8 CKT,MLO,NEMA1&3R |
Discount Schedule |
DE3C |
GTIN |
785901974017 |
Returnability |
Yes |
Country of origin |
US |
Packing Units
Unit Type of Package 1 |
PCE |
Number of Units in Package 1 |
1 |
Package 1 Height |
6.70 in (17.018 cm) |
Package 1 Width |
18.10 in (45.974 cm) |
Package 1 Length |
18.60 in (47.244 cm) |
Package 1 Weight |
16.00 lb(US) (7.258 kg) |
Unit Type of Package 2 |
PAL |
Number of Units in Package 2 |
42 |
Package 2 Height |
43.50 in (110.49 cm) |
Package 2 Width |
40.00 in (101.6 cm) |
Package 2 Length |
48.00 in (121.92 cm) |
Package 2 Weight |
709.00 lb(US) (321.597 kg) |
